简介
Table-Render 是一个基于 JSON Schema 的动态表格渲染器,支持通过配置化的方式快速生成复杂的表格界面。它提供了丰富的表格功能、灵活的列配置系统和强大的数据处理能力。
核心特性
- JSON Schema 驱动:基于标准的 JSON Schema 规范
- 虚拟滚动支持:内置虚拟滚动技术,轻松处理大数据量
- 丰富的列类型:内置多种列类型,支持自定义列渲染器
- 灵活的布局:支持固定列、表头固定、响应式设计
- 强大的数据处理:内置排序、筛选、分页等功能
- TypeScript 支持:完整的类型定义
安装
npm install table-render
基本用法

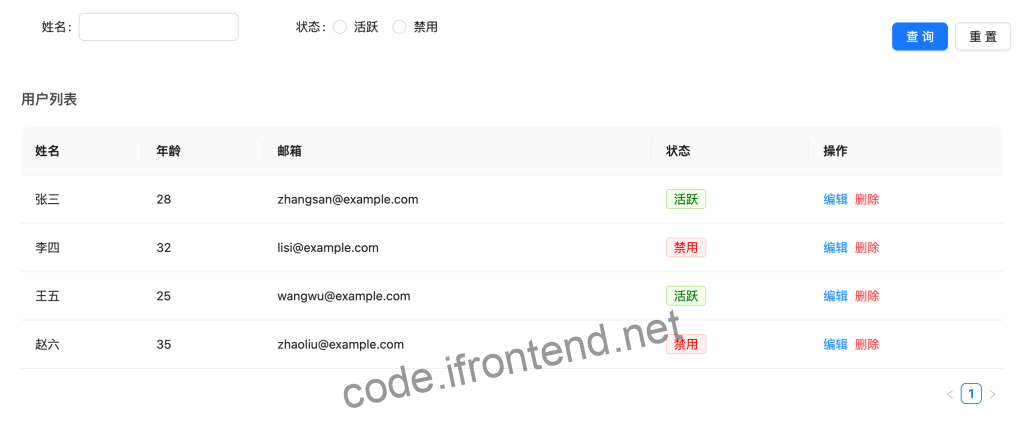

简单示例
import TableRender from "table-render";
const BasicExample = () => {
// Define search schema for the search form
const searchSchema = {
type: "object",
properties: {
name: {
title: "姓名",
type: "string",
},
status: {
title: "状态",
type: "string",
enum: ["active", "disabled"],
enumNames: ["活跃", "禁用"],
},
},
};
// Define table columns
const columns = [
{
title: "姓名",
dataIndex: "name",
key: "name",
},
{
title: "年龄",
dataIndex: "age",
key: "age",
},
{
title: "邮箱",
dataIndex: "email",
key: "email",
},
{
title: "状态",
dataIndex: "status",
key: "status",
render: (status) => (
<span
style={{
color: status === "active" ? "green" : "red",
padding: "2px 8px",
borderRadius: "4px",
backgroundColor: status === "active" ? "#f6ffed" : "#fff2f0",
border: `1px solid ${status === "active" ? "#b7eb8f" : "#ffccc7"}`,
}}
>
{status === "active" ? "活跃" : "禁用"}
</span>
),
},
{
title: "操作",
key: "actions",
render: (_, record) => (
<div>
<button
onClick={() => handleAction("edit", record)}
style={{
marginRight: 8,
color: "#1890ff",
border: "none",
background: "none",
cursor: "pointer",
}}
>
编辑
</button>
<button
onClick={() => handleAction("delete", record)}
style={{
color: "#ff4d4f",
border: "none",
background: "none",
cursor: "pointer",
}}
>
删除
</button>
</div>
),
},
];
// Mock API function with search functionality
const api = (params) => {
console.log("API called with params:", params);
// 完整的数据源
const allData = [
{
id: "1",
name: "张三",
age: 28,
email: "zhangsan@example.com",
status: "active",
},
{
id: "2",
name: "李四",
age: 32,
email: "lisi@example.com",
status: "disabled",
},
];
// 根据查询参数过滤数据
let filteredData = allData;
if (params && Object.keys(params).length > 0) {
filteredData = allData.filter((item) => {
let match = true;
// 按姓名过滤
if (params.name && params.name.trim()) {
match = match && item.name.includes(params.name.trim());
}
// 按状态过滤
if (params.status) {
match = match && item.status === params.status;
}
return match;
});
}
return Promise.resolve({
data: filteredData,
total: filteredData.length,
});
};
const handleAction = (action, record) => {
console.log("Action:", action, "Record:", record);
};
return (
<TableRender
search={{ schema: searchSchema }}
request={api}
columns={columns}
title="用户列表"
pagination={{ pageSize: 10 }}
/>
);
};
export default BasicExample;

API 参考
TableRender Props
属性名 | 类型 | 默认值 | 描述 |
---|---|---|---|
table | object | – | 表格实例,通过 useTable() 创建 |
schema | object | – | JSON Schema 配置对象 |
dataSource | array | [] | 表格数据源 |
onAction | function | – | 操作按钮点击回调函数 |
pagination | object | false | 分页配置 |
virtual | object | false | 虚拟滚动配置 |
scroll | object | – | 滚动配置 |
loading | boolean | false | 加载状态 |
rowSelection | object | – | 行选择配置 |
expandable | object | – | 展开行配置 |
useTable Hook
useTable Hook 提供了表格状态管理的方法:
方法名 | 参数 | 返回值 | 描述 |
---|---|---|---|
getSelectedRows | () | array | 获取选中的行 |
setSelectedRows | (rows: array) | void | 设置选中的行 |
clearSelection | () | void | 清空选中状态 |
getTableData | () | array | 获取表格数据 |
setTableData | (data: array) | void | 设置表格数据 |
refresh | () | void | 刷新表格 |
exportData | (format: string) | void | 导出数据 |
使用示例
const table = useTable();
// 获取选中的行
const selectedRows = table.getSelectedRows();
// 设置表格数据
table.setTableData(newData);
// 清空选中状态
table.clearSelection();
列类型配置
基础列类型
// 文本列
{
title: "姓名",
dataIndex: "name",
type: "text",
width: 120,
ellipsis: true
}
// 数字列
{
title: "价格",
dataIndex: "price",
type: "number",
width: 100,
precision: 2,
prefix: "¥"
}
// 日期时间列
{
title: "创建时间",
dataIndex: "createTime",
type: "datetime",
width: 180,
format: "YYYY-MM-DD HH:mm:ss"
}
// 标签列
{
title: "状态",
dataIndex: "status",
type: "tag",
width: 100,
options: [
{ label: "进行中", value: "progress", color: "blue" },
{ label: "已完成", value: "completed", color: "green" }
]
}
// 操作列
{
title: "操作",
key: "actions",
type: "actions",
width: 150,
actions: [
{ label: "编辑", type: "primary", action: "edit" },
{ label: "删除", type: "danger", action: "delete" }
]
}
高级功能
表头固定和列固定
<TableRender
schema={schema}
dataSource={dataSource}
scroll={{ y: 400 }}
sticky={{ offsetHeader: 64 }}
/>
// 列固定
{
title: "姓名",
dataIndex: "name",
fixed: "left" // 左侧固定
}
{
title: "操作",
key: "actions",
fixed: "right" // 右侧固定
}
行选择
<TableRender
schema={schema}
dataSource={dataSource}
rowSelection={{
type: "checkbox",
selectedRowKeys: selectedKeys,
onChange: (selectedRowKeys, selectedRows) => {
setSelectedKeys(selectedRowKeys);
},
}}
/>
排序和筛选
// 排序
{
title: "年龄",
dataIndex: "age",
sorter: true,
defaultSortOrder: "ascend"
}
// 筛选
{
title: "状态",
dataIndex: "status",
filters: [
{ text: "活跃", value: "active" },
{ text: "禁用", value: "disabled" }
],
onFilter: (value, record) => record.status === value
}
数据导出
const handleExport = (format) => {
const selectedRows = table.getSelectedRows();
const exportData = selectedRows.length > 0 ? selectedRows : dataSource;
switch (format) {
case "excel":
table.exportToExcel(exportData, "用户数据.xlsx");
break;
case "csv":
table.exportToCSV(exportData, "用户数据.csv");
break;
}
};
性能优化
虚拟滚动
<TableRender
schema={schema}
dataSource={largeDataSource}
virtual={{
enabled: true,
height: 600,
itemHeight: 54,
buffer: 10,
}}
rowKey="id"
/>
常见问题
Q: 如何处理大数据量渲染?
A: 使用虚拟滚动功能:
<TableRender
virtual={{
enabled: true,
height: 600,
itemHeight: 54,
}}
dataSource={largeDataSource}
/>
Q: 如何自定义列渲染?
A: 使用 render 函数:
{
title: "自定义列",
dataIndex: "custom",
render: (value, record, index) => {
return <CustomComponent value={value} record={record} />;
}
}
Q: 表格性能优化方法?
A:
- 使用虚拟滚动处理大数据
- 合理使用
React.memo
优化组件渲染 - 使用
rowKey
提供稳定的 key - 分页加载数据,避免一次性加载过多数据
总结
Table-Render 提供了强大而灵活的表格渲染能力:
- 配置化驱动:通过 JSON Schema 快速构建表格
- 高性能渲染:支持虚拟滚动,轻松处理大数据量
- 丰富的功能:排序、筛选、分页、导出等完整功能
- 灵活定制:支持自定义列、主题、样式等
通过合理使用这些特性,可以快速构建出功能完善、性能优异的数据表格组件。
